HFFR (Halogen Free Flame Retardant) Insulation 90°C: Safe, Non-Toxic & Non-Corrosive Solution

Our HFFR insulation does not support flame propagation or fire, making it an ideal choice for environments where safety and performance are paramount.

Applications

Designed for versatility, these cables are perfect for residential, commercial, and public infrastructure, including auditoriums, hospitals, hotels, schools, and stadiums. They excel in domestic settings, conduit wiring, and installations where protection is crucial, ensuring reliability and safety across various environments.

Technical Specifications

• Approvals: Conforms to IS 17048 standards, FIA/TAC certified.
• Cable Code: XZ.
• Voltage Grade: Safe for use up to 1100V.
• Conductor: Utilizes multi-drawn, electrolytic annealed plain copper for consistent resistance, dimensions, and flexibility.
• Insulation: Features HFI-XL 90, a crosslinked (thermoset) halogen-free flame retardant material.
• Colors Available: A range of colors including Green, Black, Red, Yellow, Blue, Grey, and White for easy identification.

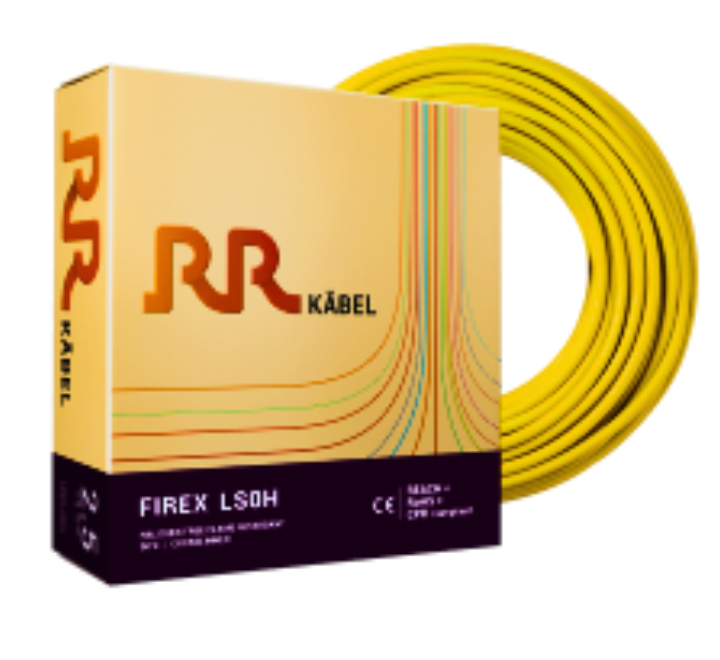

• Marking: Each cable is clearly marked with ‘FIREX LSOH’ for easy recognition.
• Packaging: Supplied in 90-meter coils, securely packed in protective cartons for safety and convenience.

Key Properties

• Temperature Range: Operable between -15°C to +90°C, with a maximum short-circuit temperature rating of 250°C.
• Fire Safety: Exhibits exceptional resistance to burning, does not melt or drip, producing minimal, transparent, and non-toxic smoke. This significantly reduces suffocation risks in fire incidents, aiding in evacuation and firefighting efforts.
• Durability: Offers superior longevity compared to traditional cables, with added resistance to ozone.
• Safety Features: Self-extinguishing and flame retardant as per IS 10810 P – 61 standards. Also, it’s engineered to be anti-rodent and anti-termite.

Cable Design Parameters

Customize your cable selection by adding the specific color suffix to the part numbers in place of ‘xx’:

• 01 for Green, 02 for Black, 03 for Red, 04 for Blue, 05 for Yellow, 06 for Grey, 07 for White.

Enhance the safety and reliability of your installations with our HFFR cables, designed to meet the highest standards of protection and performance.
